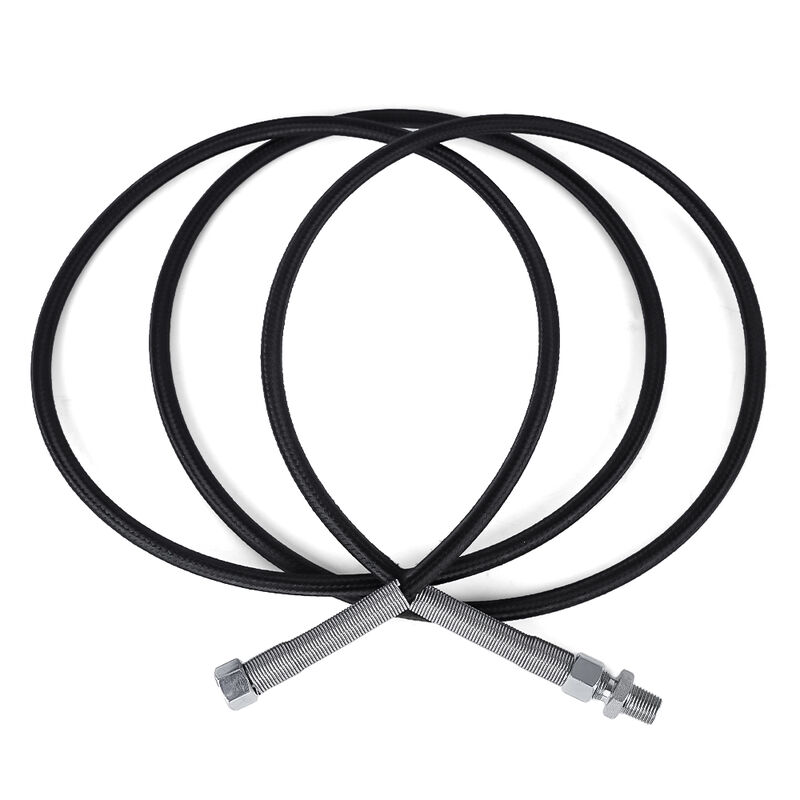

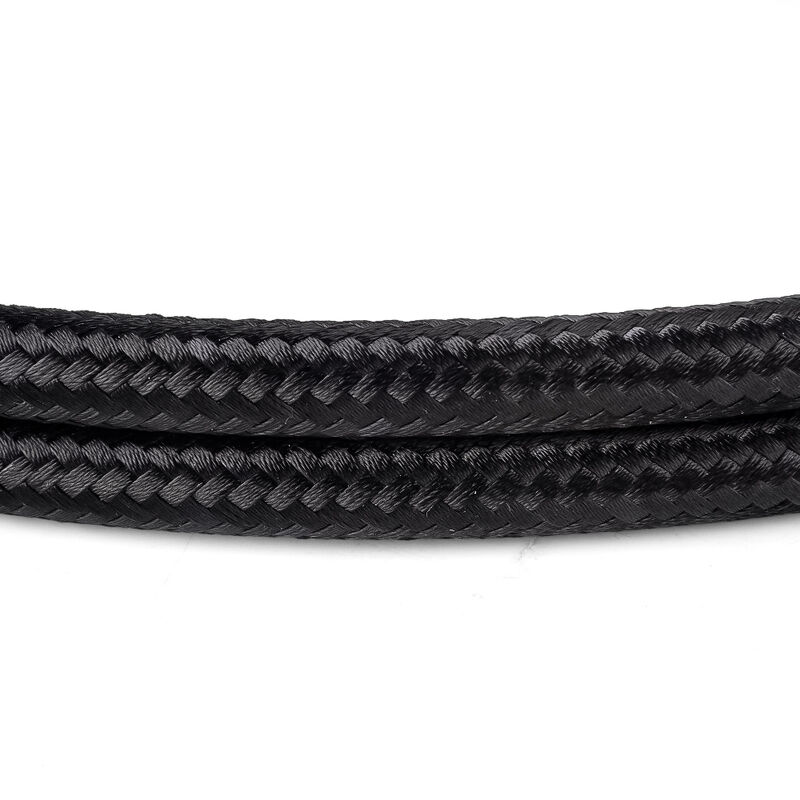

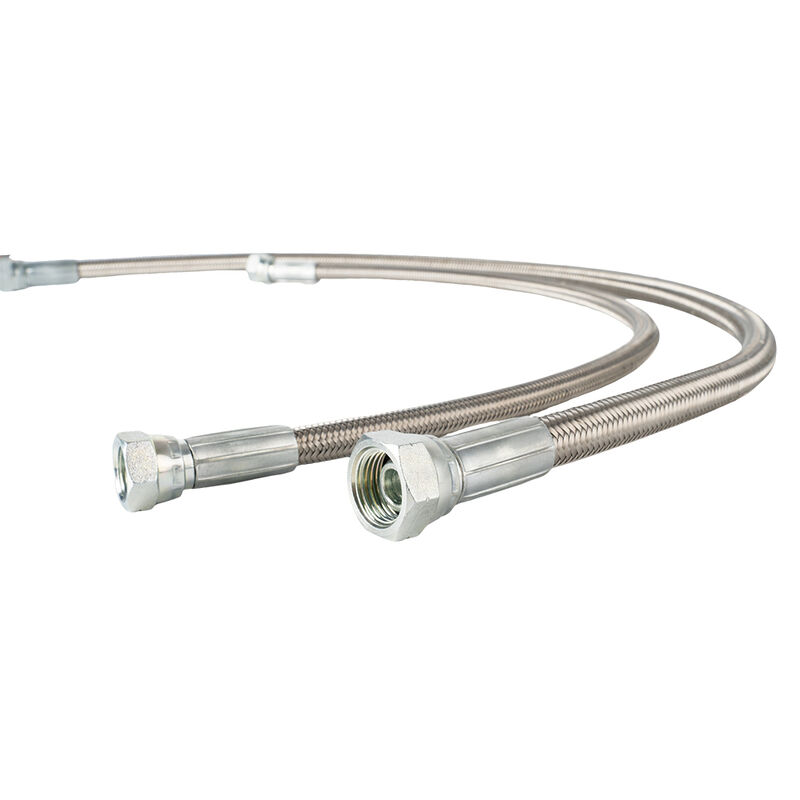

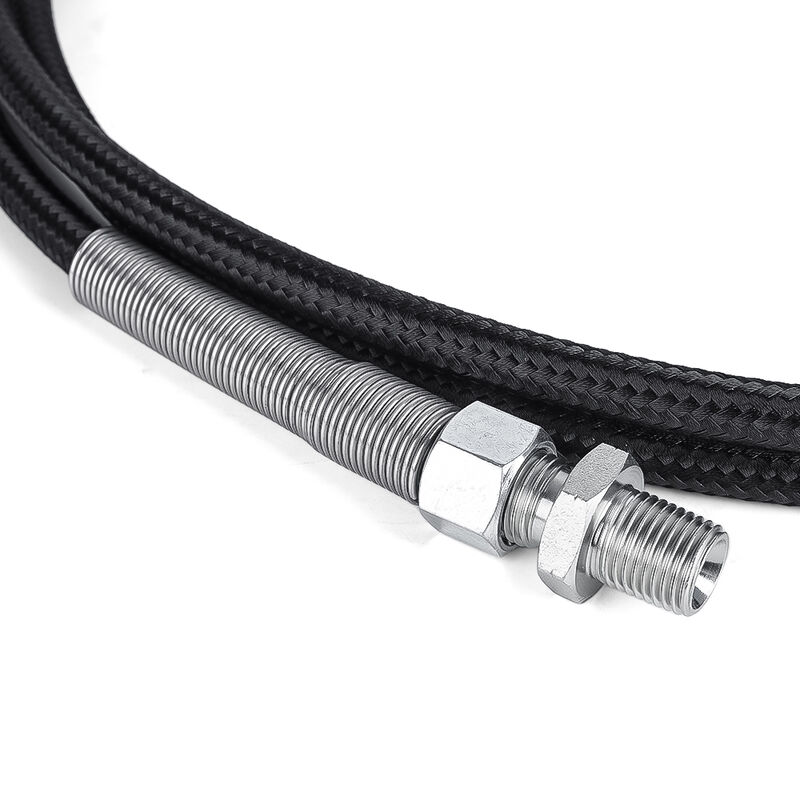

Smooth Bore PTFE Braided Hose for High Temperature Resistance
Description:
Smooth Bore Stainless Steel Braided PTFE Hoses
Inner tube: Smooth bore PTFE
Out Cover: Stainless Steel 304 or 316 Wire Braided
Temperature Range: -65℃ ~ +260℃
Standard: SAE 100R14
Feature: Excellent chemical resistance, high and low temperature resistance, excellent corrosion resistance, non-stick surface, flexibility, high purity, electrical insulation.
All braided PTFE hoses can increase Anti-Static performance with carbon treatment.
|
Part-number |
Inner Diameter |
I.D. (mm) |
O.D. (mm) |
Bending Radius |
Min.W.P |
Min. B.P. |
| PR14-02 | 1/8" | 3.2 | 6.7 | 16 | 250 | 1000 |
| PR14-03 | 3/16" | 5.0 | 7.6 | 20 | 205 | 820 |
| PR14-04 | 1/4" | 6.5 | 9.4 | 27 | 188 | 752 |
|
PR14-05 |
5/16'' |
8.0 |
11.1 |
27 |
162 |
648 |
|
PR14-06 |
3/8'' |
10.0 |
13.2 |
33 |
130 |
520 |
|
PR14-08 |
1/2'' |
13.0 | 16.2 | 66 | 112 | 448 |
| PR14-10 | 5/8" | 16.3 |
19.4 |
150 |
80 |
320 |
|
PR14-12 |
3/4'' |
19.0 |
23.0 |
226 |
70 |
280 |
| PR14-14 | 7/8" | 22.5 | 26.2 | 245 | 60 | 240 |
|
PR14-16 |
1'' |
25.4 |
29.8 |
300 |
50 |
200 |
Application:
Industrial steam ironing machines
Large commercial steam irons
Industrial laundry and garment finishing equipment
Central steam supply systems for ironing lines
High temperature steam conveying systems in factories
